Understand Phases Associated With Metal Fabricating

Understand Phases Associated With Metal Fabricating

Metal manufacturing is the procedure for creating constructions or artifacts by designing, cutting, joining and assembling of raw substances that are metallic. This procedure seeks to add value long-lasting and therefore precise engineering drawings must be adhered to so the ultimate product is appealing, within the mandatory standards. Metal manufacturing is an artwork that takes up heavily on engineering principles.

Metal Manufacturing Procedure

Measure 1: Layout

You will find clearly identified standards (British Standards, Euro-codes etc) and laws regulating the layouts of engineering equipment and constructions. These standards are based upon the utilization of raw materials accessible environmental conditions in addition to a specific area. Before the layout and manufacturing procedure starts fabricator are obliged to clearly identify these standards and demands to customers. This may include taking a municipal engineers for acceptance the layout computations sheets.

Understand Phases Associated With Metal Fabricating

Measure 2: Marking Out

In small scale metal manufacturing the mark outside is done right on the sheet metal used as the points of reference with the square borders or square lines in the engineering drawings.

Yet in large-scale production templates unique paper or metal are used according to the amount and kind of merchandise. The price of the templates should be justifiable. Attention should be taken as the entire batch made using it’d be flawed when using form work to ensure the correctness of the measurements since a flawed template can result in enormous declines.

Measure 3: Cutting

Either Thermal cutting or shearing can does cutting of sheet metal.

Thermal cutting is done by use of either oxy acetylene or oxy-propane gas. Propane is not more expensive yet it needs specific nozzles that are cutting. This procedure is started by heating carbon steel resulting within an exothermic reaction which increases the temperatures farther. Thermal cutting implements the rule of accelerated oxidation.

Use of Best Metal Guillotine Machine mainly does shearing. Depending on the depth of the metal sheet hand operated or power driven guillotine can be utilized.

Measure 4: Forming

Use of folding machines which calls for 3 major measures does bending of metal sheets. First the stuff is securely clamped, then the folding beam that is underside pulled to form folds that are desirable and eventually the stuff is removed from machine.

Heavy and thick metal plates are turned using a Press Brake. A press brake mainly consists of a top tool and a bottom dye forming a broad ram press. You can find two primary kinds of press brake. The upward-stroking press brake which lifts the bottom tool to meet with the down and a fixed top -stroking press brake the top tool is shoved down to your underside that is fixed.

Measure 5: Joining

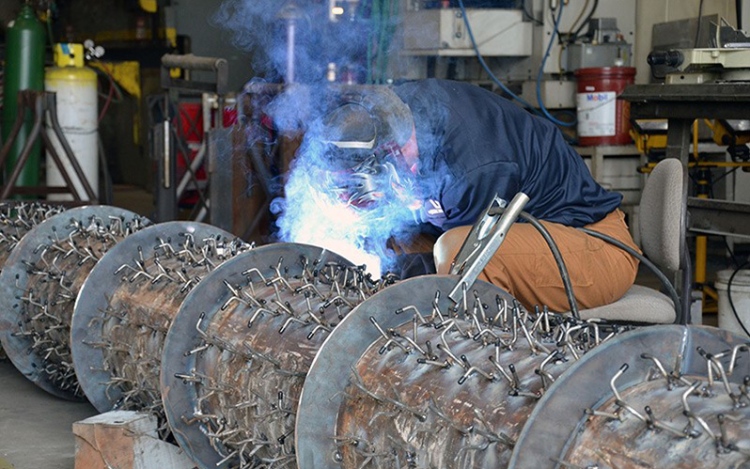

Welding is the most often employed procedure for joining. For metal manufacturing metal arc gas shielded is the procedure that is favored. The torch is linked into a positive pole with the power source being direct current (d.c). A filler wire is fed as the shielding gas is passed on the work piece.

Measure 6: Review

It is checked for dimensional accuracy, alignment and straightness to ensure it is within the allowable limitations once the work piece continues to be completely assembled.
