This article illustrates how the Arduino price in pakistan Ethernet shield can be plugged into an Arduino price in pakistan , linked to an Ethernet and then verified that the Ethernet Shield works. These are the first things you have to do when you first purchase an Arduino Ethernet shield.

Ethernet shield link

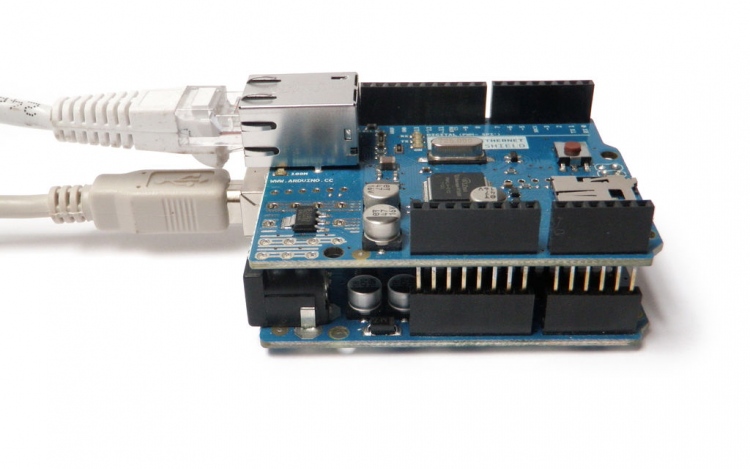

This video demonstrates how the Ethernet shield can be attached to an Arduino Uno board. Power is then transmitted via USB cable to both boards. The Ethernet cable is eventually attached on the board to the Ethernet adapter.

Relation of Ethernet Cable

The other end of the Ethernet cable is linked to a router (e.g. an Ethernet port on an ADSL router that also connects the PC to connect to the Ethernet shield).

Cable Style Ethernet

The Ethernet cable for connecting the Ethernet shield to the router is the direct form, i.e. the two connexions are single-wired (the wired link in the cable is not crossed).

Relation of Ethernet Cable

The other end of the Ethernet cable is linked to a router (e.g. an Ethernet port on an ADSL tp link router that also connects the PC to connect to the Ethernet shield).

Cable Style Ethernet

The Ethernet cable for connecting the Ethernet shield to the router is the direct form, i.e. the two connexions are single-wired (the wired link in the cable is not crossed).

Ethernet Shield Research Arduino

The following video demonstrates the load for the Ethernet Shield test of the built-in WebServer example sketch. The Arduino / Ethernet shield is set up as a small web server which serves a web page containing Arduino analogue pin values.

You will first find the PC IP address. The sketch of the WebServer would then adjust in order to use an IP address other than the PC.

The IP address used in the sketch will be entered in the URL field of your web browser after loading the sketch to Arduino. The web browser then links to the Arduino web server, displaying the analogue pin values of Arduino. The values are changed every five seconds.

IP Address Set Determination

It must define the list of addresses used by the PC. An address in this range is then assigned to Arduino that enables a PC Web browser to connect to the Arduino Web server.

Free Windows 7

On Windows 7, on the bottom of the Windows bar, click on the Internet connexion button. For the network icon (as seen in the video), you can first want to press the little ‘up arrow.’

Select Open network and sharing centre on the box that pops up when you select on the Internet Connection icon.

Select Local Link Area now, and then Info … Popping up in the dialogue box.

The PC IP address can be found next to the IPv4 address in the Network Link Details dialogue box which pops up.

Linux: Linux

Enter the following on the command line to find an IP address of a Linux computer:

Arduino Web Server Link

In the video, the IP address of a PC is 10.0.0.6 – which means that an Arduino IP address with a value of 10.0.0.x is needed where x is an unused number in the network , e.g. the video used 10.0.0.12.

Open the software WebServer example under File / Examples / Ethernet and WebServer in the Arduino IDE.

Now alter the IP address of the diagram contained on this code line:

byte mac[] = {
0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

Load the Arduino sketch now. On Windows PCs the reset button on the Ethernet shield can need to be pushed after the skizze is loaded.

Open the web browser on the PC, then type your IP address into a URL in the WebServer sketch (10.0.0.0.12 in the video, if you have issues, then use the IP address you have chosen to try the http:/10.0.0.0.12 format).

You can now connect your web browser to the Arduino Uno Internet server and see the analogue pin values displayed in your browser.
